X-CONE
Fully automatic traffic cone
management system
![](https://x-cone.com/wp-content/uploads/2022/09/austria.webp)
![](https://x-cone.com/wp-content/uploads/2022/09/Bedienteil_X-Cone_bearb-1024x848.webp)
TOUCHSCREEN
CONTROL PANEL
The X-Cone can be operated from the drivers cab.
X-Cone works fully automatic.
The driver can focus ONLY on driving.

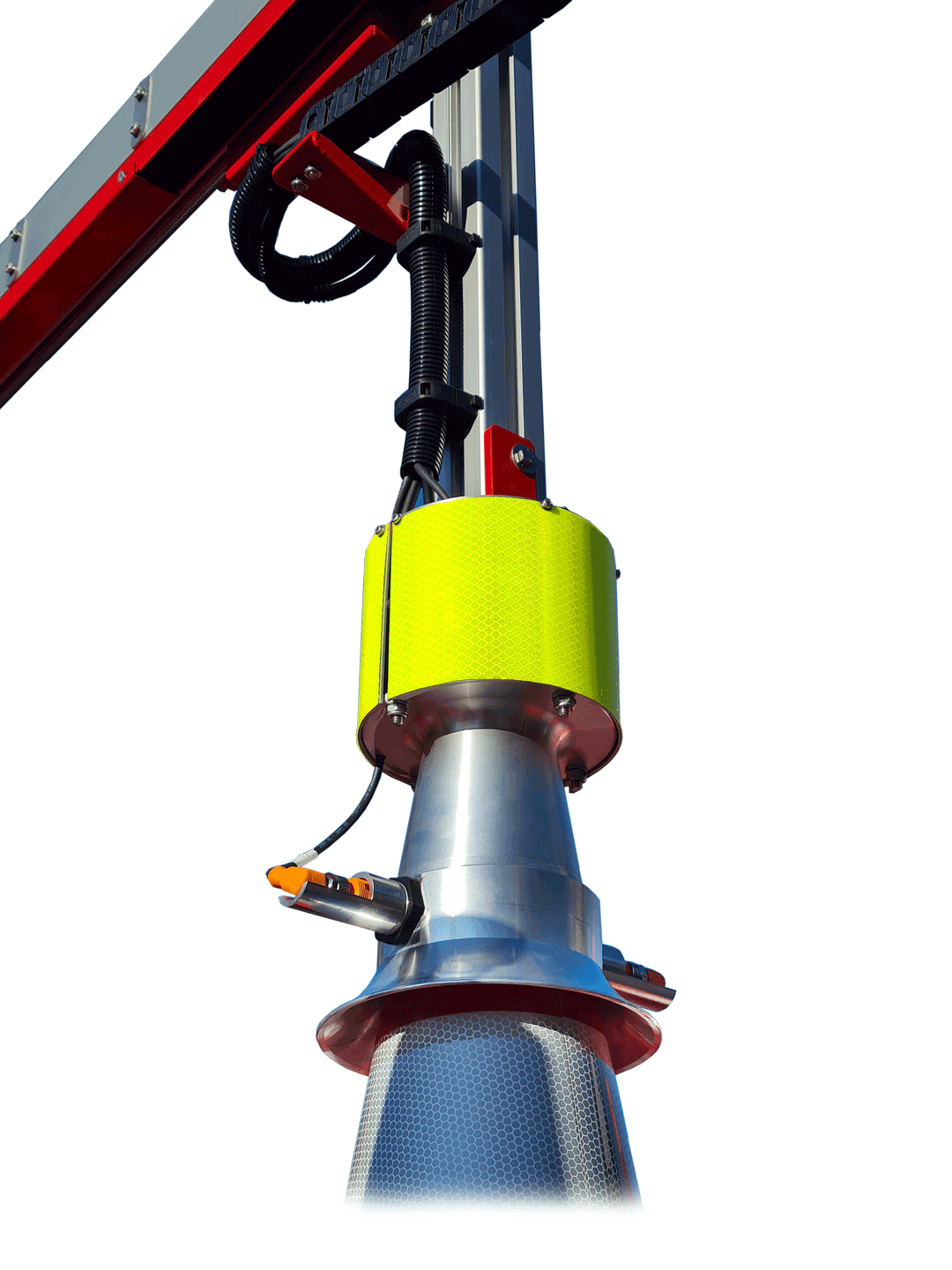

CONE
GRIPPER
X-Cone works fast.
The machine can handle up to 6 cones per minute.
The X-Cone can be installed quick and easy. Installation on trailers is also possible.
The X-Cone operates multidirectional.
The machine cen deploy and collect traffic cones on each side of the vehicle as well as in and against traffic flow direction.
![](https://x-cone.com/wp-content/uploads/2022/09/X-Cone_Gripper_01_bearb_web.webp)
TECHNICAL DETAILS
![](https://x-cone.com/wp-content/uploads/2022/09/infografik.webp)
Max. Working width
687 mm
Weight without cones
approx. 480 kg
Number of stacks
17 stacks
Capacity per stack
up to 13 traffic cones *
Total capacity
up to 221 pcs. Traffic cone
Cone spacing
≥ 10m in automatic mode
≤ 10m in manual mode
Working speed
5 - 6 cones per minute
Power supply
12 V DC with charging device and backup battery
Environmental conditions
-10°C to +50°C
Operating speed X-Cone
X-Cone machine can handle 1 cone in approx. 10 seconds. 1 m/s = 3,6 km/h
VEHICLE REQUIREMENTS
- Load area without tail lifts
- Load area min. 3501 x 2080mm (L x W)
- Available payload approx. 1800 kg
- Installation height 800 mm - 960 mm (vehicle unloaded)
